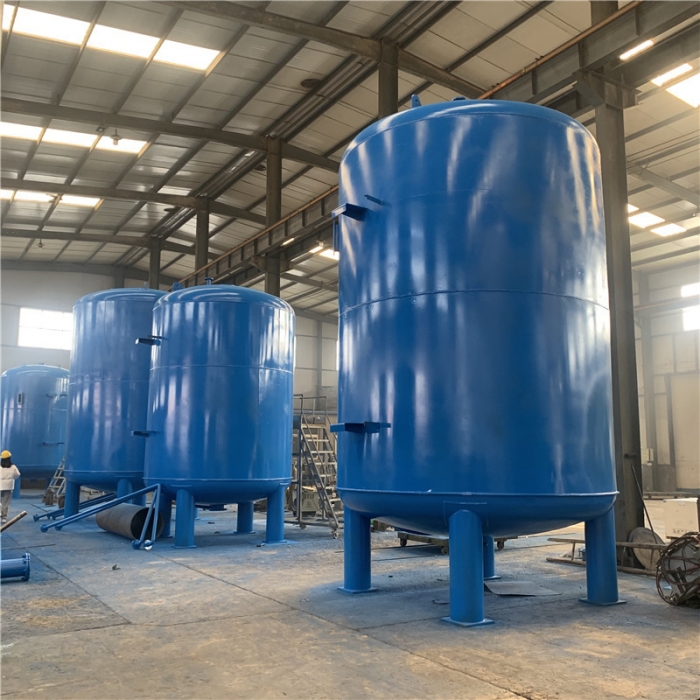

Factory Quartz Sand Filter Tank for Waste Water Treatment Purification Machine

Quartz sand filter can effectively remove suspended solids in the water and hassignificant effects on the removal of colloids, iron, organics, pesticides, manganese, bacteria, viruses and other pollutants in the water. In addition to advantages of small filtration resistance, large specific surface area, strong acid and alkali resistance, resistance to oxidation, PH scope of2-13 and anti-pollution.

water treatment filter tanks.mp4

As a unique advantages of the quartz sand filter, the filter tank is able to run self-adaptively through the optimization of the filter media and filter design, so that the quartz sand filter has a strong adaptivity to raw water concentration, operating conditions, pre-disposal process, i.e. the filter machine bedautomatically forms a non-uniform state during filtration, which helps to guarantee the water quality under a variety of operating conditions and spread the filter material when backwashing, achieving good cleaning effect. The sand filter has advantages including fast filtering speed, high filtration precision and large interception capacity, etc.

The quartz sand filtration tank is used in the industrial water, domestic water and municipal water systems requiring outflow turbidity of not greater than 5mg/l and complying with drinking water quality standards and for the removal of suspended solid sand solids in industrial wastewater, it can be used as ion exchange and pretreatment for softening desalination system and can also be used in the coarse filtration of water with undemanding industrial water quality, swimming pool circular processing system and cooling circulating water purification system.

Industrial filter tank is an efficient water treatment equipment, which removes suspended matter, microorganisms and other fine particles from water by using different types and particle size granular substances (such as quartz sand, activated carbon, fiber, etc.) as filter material. These filter material layers can complete the water filtration and purification process through mechanical filtration, adsorption filtration and biological filtration.

Technical parameter of by-pass filter for the industrial circulating water:

Flow filter flow is designed according to 5% to 10% of the total circulation volume (the by-pass filter flow of the cooling water is designed by 10 % of the circulation volume and the by-pass filter flow of chilled water is designed by 5% of the circulation volume) and the filtration rate is designed by 20 - 3Smih according to water quality of the system. Specific to corrosive suspended solids of the circulating water system as well as the control, our technical support team has designed a variety of manual/automatic by-pass filtrating equipment in line with customer demand.

Application:

Pretreatment of advanced water from industrial wastewater sources. Production of process and potable water for industry from bore water and surface water supplies. Pretreatment prior to demineralisation or ion exchange. Pretreatment prior to RO for hygienic process water or production of infant formula, dairy products, beverages, cosmetic and pharmaceutical products. Treatment of wastewater to meet strict environmental discharge standard - particularly with the inclusion of green sand media.

1. Electronic industry, semiconductor industry ultra-pure water treatment

2. Chemical, pharmaceutical industry pure water treatment
3. Food, beverage, drinking water, bottled drinking water, small bag packaging pure drinking water treatment
4. Electroplating, leather industry wastewater treatment
5. Brackish water desalination, seawater desalination, metallurgy and light industry pure water treatment
6. Cosmetics, car batteries, liquid fertilizer production pure water treatment
7. Edible ice cubes, tube ice, etc.
8. School, hotel, hospital, laboratory, surface treatment, hydraulic test, industrial boiler, power station boiler,high pressure boiler water treatment

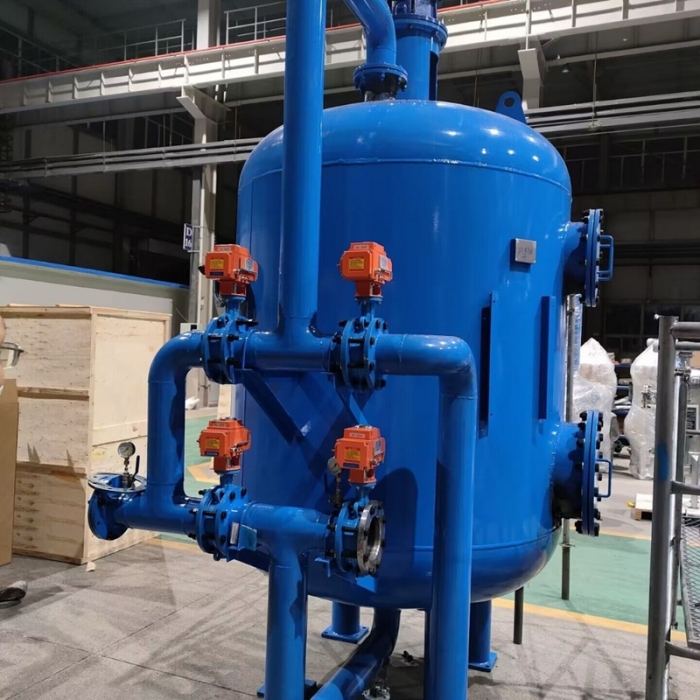

Automatic filter is a water treatment equipment with integrated automatic control function, which includes several key components:

1. Water inlet: This is the inlet of water into the quartz sand filter, usually equipped with a valve or control device to regulate the flow of water into the filter equipment.
2. Water outlet: The filtered water flows out through this outlet, which can be directly used for the subsequent water treatment process or direct use.
3. Drain port: When the filter is backwashed, the waste water containing impurities will be discharged through this outlet. Backwashing is a regular process used to remove accumulated impurities on the filter material and maintain the filtration efficiency of the filter device.
4. Pressure gauge: used to monitor the pressure inside the quartz sand filter. It can help to monitor the working condition of the filter tank, such as high pressure may mean that the filter material is blocked and needs to be backwashed.

Features

1. Manual or automatic control is available;

2. Water distributor is simple, uniform and reliable;

3. Finished water collector has high strength and long service life;

4. Easy to install. Only connect the inlet and outlet to the waste pipe when installing;

5. Less water consumption in backwash: A homogeneous filter is used, so that backwash cycle is extended and the total backwash water volume is greatly reduced;

6. High backwash efficiency: An advanced water collector is used, ensuring efficient backwash effect.
