High Efficiency Pulse Jet Bag Filter Dust Collector Industrial Dust Removal Equipment Baghouse

Dust removal equipment High Efficiency and Durability Industrial Dust Collector

The equipment that separates the dust from the flue gas is called a dust collector or dust removal equipment. The performance of the dust collector is expressed in terms of the amount of gas that can be processed, the resistance loss when the gas passes through the dust collector, and the dust removal efficiency. At the same time, the price of the dust collector, the cost of operation and maintenance, the length of service life and the difficulty of operation and management are also important factors to consider its performance. Dust collector is a common facility in boiler and industrial production.

The working quality of the dust collector not only directly affects the reliable operation of the dust removal system, but also relates to the normal operation of the production system, the environmental sanitation of the workshop and the surrounding residents, the wear and life of the fan blades, and also involves the economic value of materials. Recycling issues. Therefore, it is necessary to correctly design, select and use the dust collector. When selecting a dust collector, one investment and operating costs must be fully considered, such as dust removal efficiency, pressure loss, reliability, one investment, floor area, maintenance management and other factors. According to the physical and chemical properties, characteristics and production process requirements of soot, targeted Select the dust collector.

Different dust collectors have different dust removal efficiency. For dust removal systems with unstable or volatile operating conditions, attention should be paid to the effect of changes in flue gas treatment capacity on dust removal efficiency. During normal operation, the efficiency of the dust collector is sorted as follows: bag filter, electric dust collector and Venturi dust collector, water film cyclone dust collector, cyclone dust collector, etc.

Bag filter dust collector has the following advantages:

The working principle of bag dust removal is the process of collecting dust particles by using filter cloth processed by cotton, wool or man-made fiber.

The dust removal efficiency is high, especially for fine powder also has a high complementary collection efficiency, generally up to 99%;

It can handle different types of particulate pollutants (including high specific resistance dust that is not easy to handle by electrostatic precipitators). According to the processing gas can be designed into a small bag filter, can also be designed into a large bag room;

When the operation elasticity is large and the dust concentration of the inlet gas changes greatly, it has little effect on the dust removal efficiency. In addition, the dust removal efficiency also has a certain stability to the change of airflow velocity;

Simple structure, flexible use, easy to recover dry material, there is no sludge treatment.

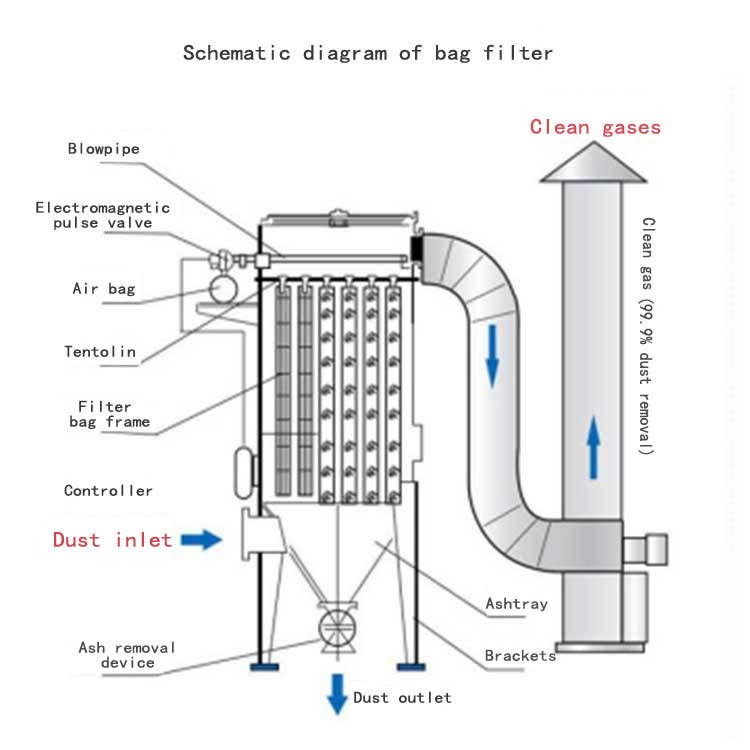

Work Flow

Detailed CAD drawings and dimensional diagrams are available for download upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.

The application of bag filter is mainly limited by the temperature resistance and corrosion resistance of the filter cloth; the use temperature of the general filter cloth is less than 300 ℃; the bag filter is not suitable for removing dust particles with strong adhesion and hygroscopicity, especially the flue gas temperature cannot be lower than the dew point temperature, otherwise it will frost on the filter cloth, causing the paste bag to be blocked, thus affecting the normal operation of the bag filter.
