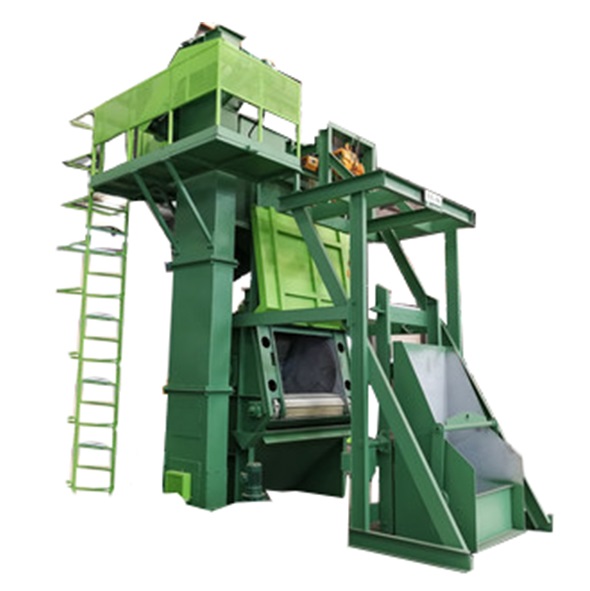

Name:8GN/15GN/28GN Steel / Rubber Belt Tumble Shot Blasting Machine

Product Description

This machine can be used to derust and streng then the surface of workpieces with mass productions.The workpieces must accept collision. this series machines can be singlely used or together with others.


Applications:
Shot peening of heavily stressed components.
Desanding and descaling of castings and forgings.
Preparation of surfaces for protective coating.
Cleaning of castings and forgings.
Aesthetic finishing of dye castings of aluminum, zinc and alloy steels.

Removal of heat treated scales.


Technical Parameter:

Item

Unit

15GN

28GN

Productivity

t/h

5-6

10-12

Feeding amount

kg

1300

1500

Maximum weight of single piece

kg

230

363

Diameter of end disk

mm

Ø1092

Ø1245

Effective volume

m3

0.43

0.79

Shot-blasting capacity

kg/min

480

700

Air volume for dedusting

m3/h

5300

6500

Power consumption

kw

49.3

64.5

Outline dimention

mm

4597*3262*5709

5300*5432*6814
